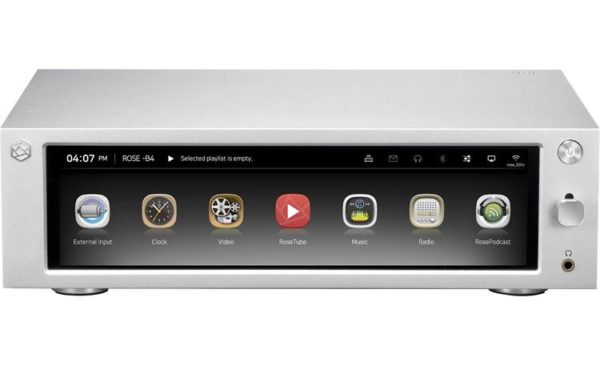

RS201E is the HiFi Network Media Player that provides High Quality Sound, Ultra High Pixel Stream together with various type of Multi Media services based on HiFi Design Expertise and ROSE platform.
Specifications
- OS
- Android 7.0 (Nougat)
- Design
- Size
- 278 x 202 x 76 mm
- Weight
- 2.3kg
- Finishing
- High-quality anodized aluminum front-top with modern sense
- Display
- Wide view 8.8″ multi touch screen
- Power
- Maximum output
- 100W
- Speaker impedance
- 4~16 Ω
- Wireless
- Network
- Ethernet 10/100/1000 BASE-T
WiFi (802.11 b/g/n/a/ac) 2.4Ghz/5Ghz Dual Band
- Bluetooth
- Bluetooth 4.0 (AD2DP SINK, AVRCP)
- Streaming
- Airplay / DLNA Service
- Input, Output
- Audio input
- Connections for source devices such as CD/ DVD /Blu-ray Player
S / PDIF connections for TV, Projector, CD / DVD / Blu-ray Player
- Audio output
- Headphone Out : Connection for 3.5mm headphone
PreAmp Out : Connection for vacuum tube amplifier, reference amplifier
Speaker Out : Connection for L+/L-, R+/R- speaker
Optical Out : S / PDIF connections for sound bar
- Video output
- HDMI connections for TV, Projector
- Media connection
- USB 2.0 x 1, USB3.0 x 1 (File system – NTFS/FAT32, Supported capacity – 512GB, External HDD by 4TB)
MicroSD x 1 (File system -NTFS/FAT32, Supported capacity – 512GB) SATA3.0 SSD x 1 (File system – NTFS, Supported protocol – FTP/WebDav, 4TB)
USB C type x 1 (Only for service)
- Supported codec
- Audio
- MQA, WAV, FLAC, WMA, MP3, APE, DFF, DSF, AAC, CDA, AMR, APE, EC3, E-EC3, MID, MPL, MP2, MPC, MPGA, M4A
PCM : 8KHz~384KHz(8/16/24/32bit per Sample)
Native DSD: DSD64(2.8MHz)/DSD128(5.6MHz)/DSD256(11.2MHz)
- Video
- ASF, AVI, MKV, MP4, WMV, MPEG-1, MPEG-2, MPEG-4 H.263, H.264, H.265, VC-1, VP9, VP8, MVC
H.264/AVC, Base/Main/High/High10 profile@level5.1 up to 4Kx2K@30fps
H.265/HEVC, Main/Main10 profile@ level 5.1 High-tier up to 4Kx2K@60fps
