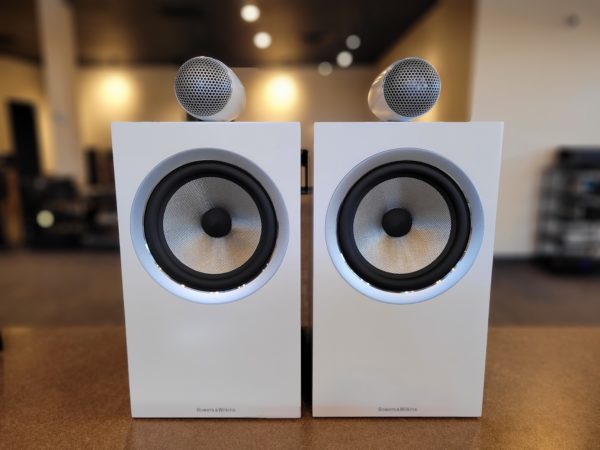

Standmount speaker
This uncompromising two-way speaker reveals subtle nuances in music others miss. Its high performance features include a solid body Tweeter-on-Top design borrowed from the 800 Series Diamond.
Technical specifications
Model
705 S2
Description
2-way vented-box system
Features
Decoupled Carbon Dome tweeter
Solid Body Tweeter-on-Top
Continuumâ„¢ cone bass / midrange
Flowportâ„¢
Drive units
1x ø25mm (1 in) Decoupled Carbon Dome high-frequency
1x ø165mm (6.5 in) Continuum cone bass / midrange
Frequency range
-6dB at 45Hz and 33kHz
Frequency response
50Hz – 28kHz ±3dB
Sensitivity
88dB spl (2.83Vrms, 1m)
Harmonic distortion
2nd and 3rd harmonics (90dB, 1m)
<1% 100Hz – 22kHz
<0.5% 150Hz – 20kHz
Nominal impedance
8Ω (minimum 3.7Ω)
