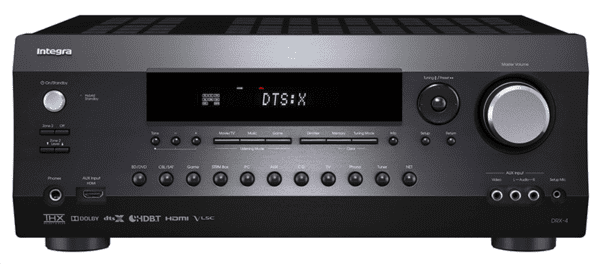

Take the plunge into a head-to-toe immersive world like nothing you’ve seen, heard, or felt before. The DRX-4.2 boasts high-grade componentry, state-of-the-art connectivity, and the Integra stamp of quality. THX certification merely confirms the superb value being offered.
The DRX-4.2 combines accurate, noise-free signal processing with high-current power for dynamic speaker control. The result is pure, rich and authentic sound. Integra’s dynamic audio amplification continuously delivers 100 Watts per channel (8 Ohms, 20 Hz-20 kHz, 0.08% THD, 2 Channels Driven) with 35 amps of high instantaneous current capability.
THX® Certified Select™
The DRX-4.2 is Certified Select by THX. THX spends 40-60 hours testing over 2000 data points ensuring that the DRX-4.2 is capable of meeting rigorous audio and video performance standards for reference level, distortion free playback and includes THX Loudness Plus technology to bring out intricate details at lower listening levels.
Smooth Analog Signal
Vector Linear Shaping Circuitry (VLSC) removes pulse noise generated in D/A conversion and allows the sound wave to be reproduced with extremely high fidelity for a smooth analog signal. This is applied to the front left and right channels, which are also bi-ampable.
Powered Zones 2 & 3 with Zone 2/3 Pre-/Line Outs
The DRX-4.2 features Powered Zones 2 and 3 with Zone 2/3 Pre-/Line Output speaker selections to bring audio to speakers connected to the receiver into a second room or third room. Zone 2/3 Pre/Line Out, for HDMI Inputs 1 through 3, can be used with an outboard amp. Also featured are a Zone 2 DAC (supporting all HDMI inputs), Coax and Optical Inputs (2-CH PCM), Network (including Pandora and Spotify), and USB audio sources. There are maximum power and power on volume settings for the Main Zone, as well as bass/treble and balance controls to further customize your listening experience and help get the best performance out of your speakers.
HDBaseT Port for Multimedia Distribution
HDBaseT transmitts audio and video signals clearly up to 328 feet utilizing cat5e/cat6 cable to any certified third party HDBaseT receiver or device that has its own power supply. This makes long distance runs to projectors or a second zone easy and reliable.
Object-Based Sound Up to 7.2.4 Channels
Supports Dolby Atmos and DTS:X for an immersive three-dimensional sound-space through 7.2.2 or 5.2.4 channels. Connect an outboard power amp via 11.2-multichannel pre-outs and enjoy seamless top-to-bottom, side-to-side, and front-back coverage with four in-ceiling speakers and seven floor-standers. Individual sounds aren’t tied to channels and move naturally around your audience.
Additionally, the Dolby surround up-mixer processes content not mixed for Dolby Atmos to fill the flexible speaker layouts of a Dolby Atmos system.
UltraHD / HDR Connectivity
The DRX-4.2’s HDMI specifications and HDCP 2.2 compatibility support the latest formats being released by Hollywood. The latest HDMI specs offer a significant increase in bandwidth (up to 18Gbps) to for full UltraHD support of features such as 4:4:4 color space and 4K@50/60 (2160p), which is 4 times the clarity of 1080p/60 video resolution. The DRX-4.2 enables transmission of Dolby Vision, High Dynamic Range (HDR) formats, with BT.2020 support, and provides enhanced picture quality by simultaneously enabling greater detail for both the dark and bright parts of an image.
Further, front HDMI is available for easy connection of a video camera or game console, while a rear Sub/Zone 2 Output is ideal for connecting a projector.
Works with Sonos
Once the receiver is connected to Sonos Connect, any music or source can be sent from the Sonos app to the receiver. The receiver can be grouped to other Sonos devices on the network or it can be used independently.
Chromecast built-in with the Google Assistant
Chromecast built-in makes it super easy to stream music from your smartphone, tablet, Mac® or Windows® laptop, or Chromebook™ to the Integra DRX-4.2. Control playback, create party modes and connect with other Chromecast bulit-in devices by simply using your voice via Google Home or the Google Home App to share and control content throughout the home with ease.
Furthermore, devices with the Google Assistant built-in, can control music on the DRX-4.2 by voice as well.
Stream It Easy
The DRX-4.2 has Chromecast built-in for Audio and Airplay technologies built in. Stream virtually any audio from a smartphone, tablet or PC to your home theater for powerful sound.
With Amazon Music, Spotify, Pandora, Deezer and TuneIn built-in, you can select a station and search for music available on these services via the Integra Control Pro & Integra Music Control app (for Amazon Music) on your phone. The free apps puts a range of streaming options at your fingertips, from universal hi-res audio via network-attached devices to internet streaming services to music on your smartphone and tablet.
The Integra Control Pro app for iPod touch®/iPhone,® Android, and Kindle devices is a convenient way to control your home entertainment from anywhere within wireless range. The app has a clear graphical interface to control playback, adjust settings and handle content across multiple zones. The app serves hi-res, lossless, and compressed audio files (including 192 kHz/24-bit FLAC, DSD, Apple Lossless, Dolby® TrueHD and more) to the DRX-4.2 from your mobile devices, and gives it stunning sound.
384 kHz/32-bit Hi-Grade DAC
No matter what you’re listening to, it will sound powerfully full, clean and clear. A premium-quality AK4458 digital-to-analog converter from Asahi Kasei implements unique low-distortion filtering technologies for clear sound, and unlocks the full potential of any audio format, including compressed, lossless, and hi-res audio (MP3, WMA, FLAC, WAV, AAC, Apple Lossless, AIFF, DSD 11.2 MHz, and Dolby TrueHD).
AccuEQ Advance conducts two measurements- one to set the level, the other to set the distance and crossover for ALL speakers, including the subwoofer. In the second round of measurements, your room’s sonic characteristics are evaluated. Using this information, AccuEQ is able to prevent standing waves from forming by adjusting frequency response. The technology also detects and compensates for background noise, such as the hum from an HVAC, to ensure accurate equalization.
Choose to include or bypass EQ measurement for front left and right speakers, and choose to automatically or manually set the EQ. Further, you can save your own manual EQ settings into three available presets.
AccuReflex technology aligns the phase of upfiring “height” speakers with the sound coming directly from your
other speakers. Any delay is resolved so that everything arrives at your ears at the same time. The result is cohesive
reproduction of object-based soundtracks.
Perfect for Custom Installation
Integra products are designed and engineered to meet the demands of custom audio/video systems installers. Besides Recall with Lock / Unlock and PC Software Support, the DRX-4.2 includes system integration connectivity such as RS232 and IP control with support for 2-way communication with 3rd party home automation systems. A pair of infrared (IR) inputs and an IR output make for a clean, reliable installation and allow pass-through of IR signals to control other devices connected to the DRX-4.2, such as a TV or Blu-ray player. Three fully programmable 12 volt triggers can be used to raise/lower a projection screen, power on/off an external amplifier and open/close the drapes all with the touch of a button. Optional rack mount kits for all full size models provide a clean, finished look when installed in racks and cabinets, especially with the unit’s aluminum faceplate. Integra works closely with control systems partners such as Savant, Crestron, URC, RTI, and Ihiji and supports Control4 Simple Device Discovery Protocol (SDDP) and AMX Device Discovery for simplified system integration.
